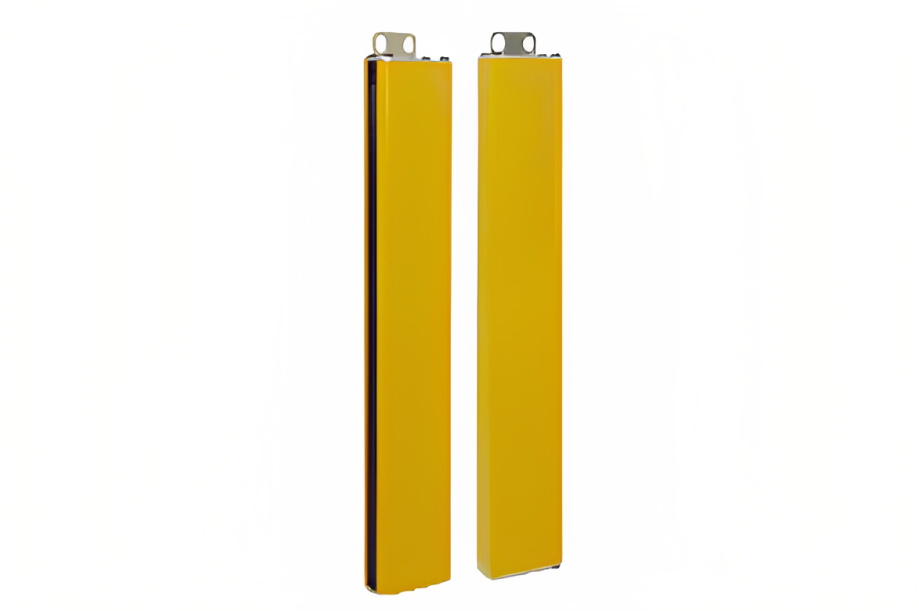

LWL/F超薄 安全光栅

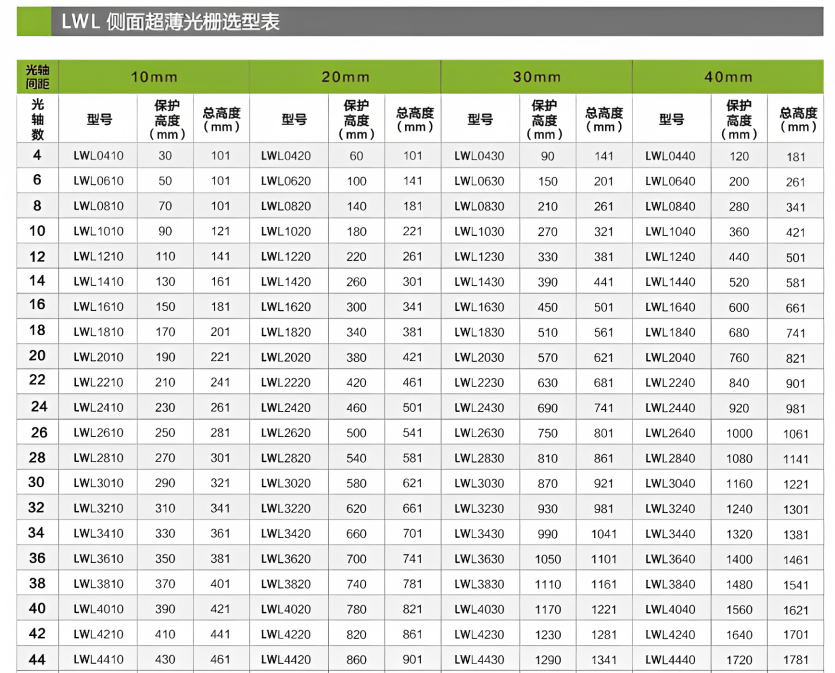

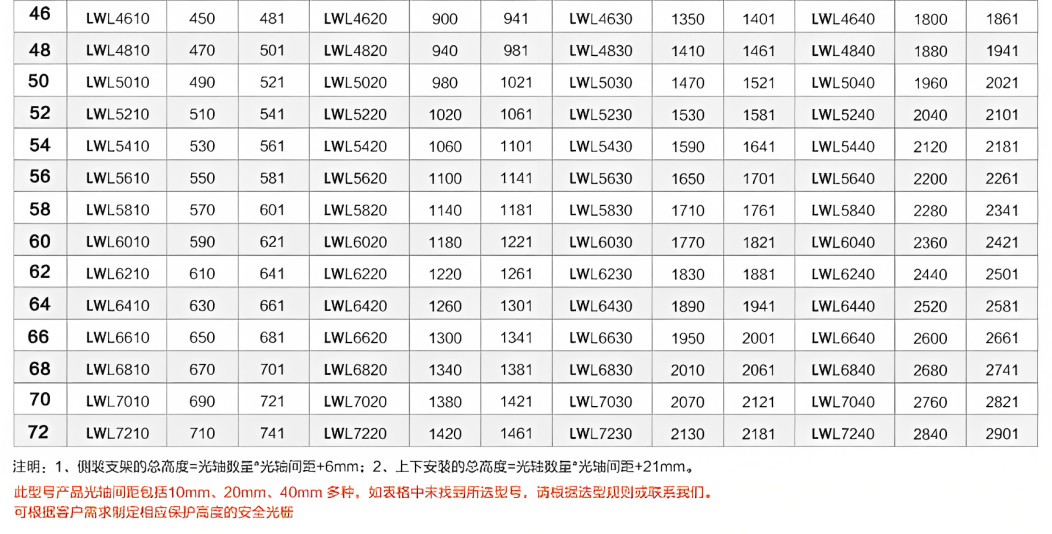

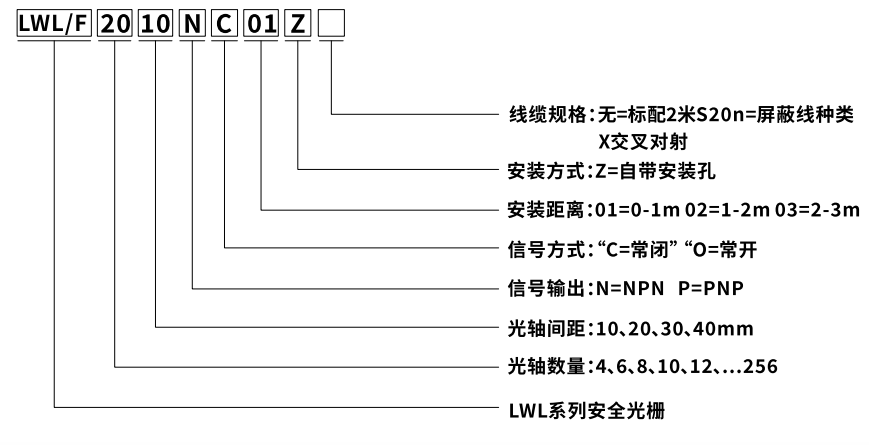

| LWF正面出光/LWL侧面发光;光栅选型表 | ||||||||||||
| 光轴间距 | 10mm | 20mm | 40mm | |||||||||
| 光轴数量 | 型号 | 保护高度mm | 总高度mm | 安装孔位mm | 型号 | 保护高度mm | 总高度mm | 安装孔位mm | 型号 | 保护高度mm | 总高度mm | 安装孔位mm |
| 6 | LWF/L0620 | 100 | 152 | 140 | LWF/L0640 | 200 | 272 | 262 | ||||
| 8 | LWF/L0810 | 70 | 117 | 107 | LWF/L0820 | 140 | 192 | 180 | LWF/L0840 | 280 | 342 | 330 |
| 10 | LWF/L1020 | 180 | 232 | 220 | LWF/L1040 | 360 | 422 | 410 | ||||
| 12 | LWF/L1210 | 110 | 157 | 147 | LWF/L1220 | 220 | 272 | 260 | LWF/L1240 | 440 | 502 | 490 |
| 14 | LWF/L1420 | 260 | 312 | 300 | LWF/L1440 | 520 | 582 | 570 | ||||
| 16 | LWF/L1610 | 150 | 197 | 187 | LWF/L1620 | 300 | 352 | 340 | LWF/L1640 | 600 | 662 | 650 |
| 18 | LWF/L1820 | 340 | 392 | 380 | LWF/L1840 | 680 | 742 | 730 | ||||
| 20 | LWF/L2010 | 190 | 237 | 227 | LWF/L2020 | 380 | 432 | 420 | LWF/L2040 | 760 | 822 | 810 |
| 22 | LWF/L2220 | 420 | 472 | 460 | LWF/L2240 | 840 | 902 | 890 | ||||
| 24 | LWF/L2410 | 230 | 277 | 267 | LWF/L2420 | 460 | 512 | 500 | LWF/L2440 | 920 | 982 | 970 |
| 26 | LWF/L2620 | 500 | 552 | 540 | LWF/L2640 | 1000 | 1062 | 1050 | ||||
| 28 | LWF/L2810 | 270 | 317 | 307 | LWF/L2820 | 540 | 592 | 580 | LWF/L2840 | 1080 | 1142 | 1130 |
| 30 | LWF/L3020 | 580 | 632 | 620 | LWF/L3040 | 1160 | 1222 | 1210 | ||||
| 32 | LWF/L3210 | 310 | 357 | 347 | LWF/L3220 | 620 | 672 | 660 | LWF/L3240 | 1240 | 1302 | 1290 |
| 34 | LWF/L3420 | 660 | 712 | 700 | LWF/L3440 | 1320 | 1382 | 1370 | ||||
| 36 | LWF/L3610 | 350 | 397 | 387 | LWF/L3620 | 700 | 752 | 740 | LWF/L3640 | 1400 | 1462 | 1450 |
| 38 | LWF/L3820 | 740 | 792 | 780 | LWF/L3840 | 1480 | 1542 | 1530 | ||||
| 40 | LWF/L4010 | 390 | 437 | 427 | LWF/L4020 | 780 | 832 | 820 | LWF/L4040 | 1560 | 1622 | 1610 |
| 42 | LWF/L4220 | 820 | 872 | 860 | LWF/L4240 | 1640 | 1702 | 1690 | ||||
| 44 | LWF/L4410 | 430 | 477 | 467 | LWF/L4420 | 860 | 912 | 900 | LWF/L4440 | 1720 | 1782 | 1770 |
| 46 | LWF/L4620 | 900 | 952 | 940 | LWF/L4640 | 1800 | 1862 | 1850 | ||||
| 48 | LWF/L4810 | 470 | 517 | 507 | LWF/L4820 | 940 | 992 | 980 | LWF/L4840 | 1880 | 1942 | 1930 |
| 50 | LWF/L5020 | 980 | 1032 | 1020 | ||||||||
| 产品尺寸图 |  | |||||||||||
| LWF超薄正面出光对射距离为0.2-2米 | ||||||||||||
| 更多型号请咨询客服。。。 | ||||||||||||
